Maxilift Crane Planning

Fit the Crane to the Truck, Payload, and Daily Lift.

A compact service crane still has to work with the truck body, chassis, storage, controls, stabilizers, and payload. TK Truck Body helps Edmonton and Alberta fleets review Maxilift crane options alongside the body build, parts path, service needs, and repair support.

Request Maxilift Crane Support Call (587) 875-5770
How to Get Started
  1. Send truck and lift details Share the chassis, body type, lift needs, reach, payload concerns, controls, and current Maxilift model if this is a repair.
  2. Review body and crane fit TK helps review mounting, stabilizers, storage layout, parts support, and service access before quoting the next step.
  3. Confirm quote or service path Get a practical next step for a Maxilift install, service request, repair, parts request, or complete crane-truck build.
Compact Service Cranes

Maxilift Crane Planning and Support

Maxilift telescopic cranes are compact lifting options for service trucks, utility bodies, and field-service applications where body space, payload, and lifting reach all matter.

TK Truck Body can help compare Maxilift crane models, review body fit, plan mounting and controls, and connect the crane package with the service body, parts, inspection, and repair support your truck may need.

Compact telescopic crane
Mid-size service crane
Larger Maxilift model
Model Reference

Maxilift Crane Models

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

Available versions and options should be reviewed against the vehicle, body layout, payload, and setup requirements.

  • Completely manual (no power required)
  • Electro-hydraulic (12V or 24V) by simple connections to the battery
  • For P.T.O. (Power Take Off) equipped vehicles
  • With rotation by lever or hydraulic
  • Hydraulic or by hand pump load lifting
  • Extensions: manual or hydraulic

Options:

  • Counterflange
  • Quick fastening kit for comfortable fixing and removal
  • Mechanic stabilizer
  • Backward attachment kit

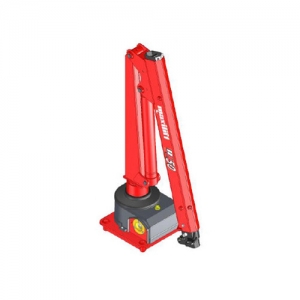

ANT ML50 - 3.7 ft lb Light Crane

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

NEW VERSION WITH 3-FUNCTION PROPORTIONAL RADIO REMOTE CONTROL AS STANDARD

  • Innovative system, lightweight and compact
  • Console with receiver and Electronic Capacity Indicator (ECI)
  • Crane functions can be operated only by radio remote control
  • Manual operators, located inside the control station, to be used only for emergency

Options:

  • Counterflange
  • Quick fastening kit for comfortable fixing and removal
  • Mechanic stabilizer
  • Backward attachment kit

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

Available versions and options should be reviewed against the vehicle, body layout, payload, and setup requirements.

Including:

  • 15 lt. oil tank for H (P.T.O. - Power Take Off) version
  • Motor pump kit with 5 lt. oil tank for electro-hydraulic versions ERS 12/24V (along with battery connection cables)
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Quick fastening kit with mechanical stabilizer
  • Crane base with hydraulic or mechanical stabilizers (fix or tilting)
  • Proportional remote control (by cable or radio)
  • 300 kg electro-hydraulic winch (for 1 and 2 extensions versions only)

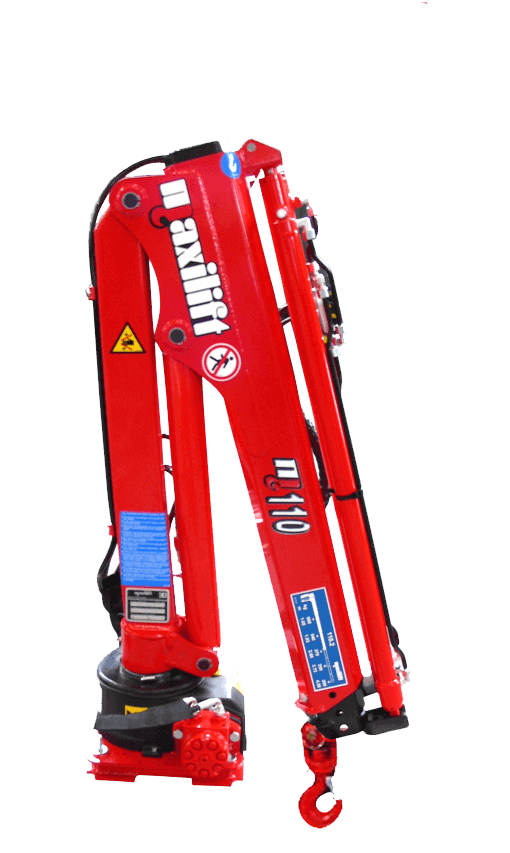

ML110 - 7.3 ft lb Telescopic Stiff Boom Crane

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

NEW VERSION WITH 3-FUNCTION PROPORTIONAL RADIO REMOTE CONTROL AS STANDARD

  • Innovative system, lightweight and compact
  • Console with receiver and Electronic Capacity Indicator (ECI)
  • Crane functions can be operated only by radio remote control
  • Manual operators, located inside the control station, to be used only for emergency

Including:

  • Motor pump kit with 1.3 gal oil tank and filter
  • Cables for connection to battery
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Quick fastening kit with mechanical stabilizer
  • Crane base with mechanical stabilizers
  • Main beam with mechanical stabilizers

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

Available versions and options should be reviewed against the vehicle, body layout, payload, and setup requirements.

Including:

  • 15 lt. oil tank for H version (P.T.O. - Power Take Off)
  • Motor pump kit with 11 lt. oil tank for electro-hydraulic versions E12/24V (along with battery connection cables)
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Crane base with 1 hydraulic and 1 mechanical stabilizers (fix or tilting)
  • Crane base with 2 hydraulic stabilizers (fix or tilting)
  • 3 - 4 functions proportional remote control (by cable or radio)
  • 500 kg hydraulic winch (for hydraulic versions only)

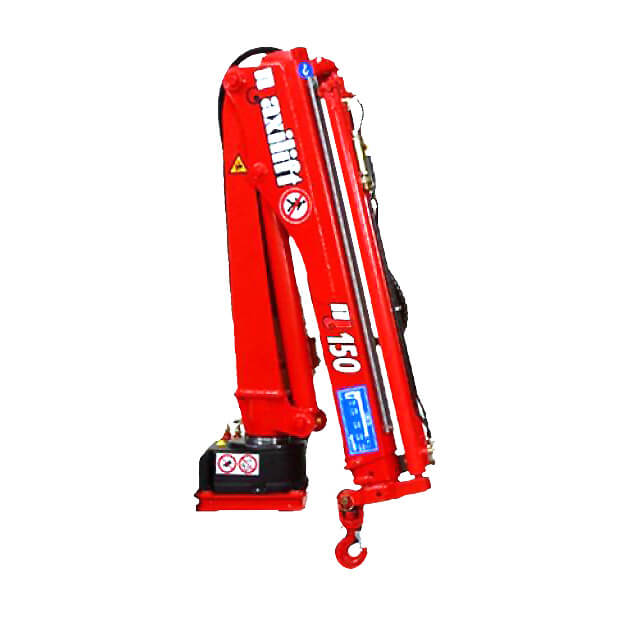

ML150 - 10.35 ft lb Telescopic Stiff Boom Crane

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

Including:

  • 15 lt. oil tank for H (P.T.O. - Power Take Off) version
  • Motor pump kit with 11 lt. oil tank for electro-hydraulic versions E12/24V (along with battery connection cables)
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Crane base with 1 hydraulic and 1 mechanical stabilizers (fix or tilting)
  • Crane base with 2 hydraulic stabilizers (fix or tilting)
  • 3 - 4 functions proportional remote control (by cable or radio)
  • 500 kg hydraulic winch (for hydraulic versions only)

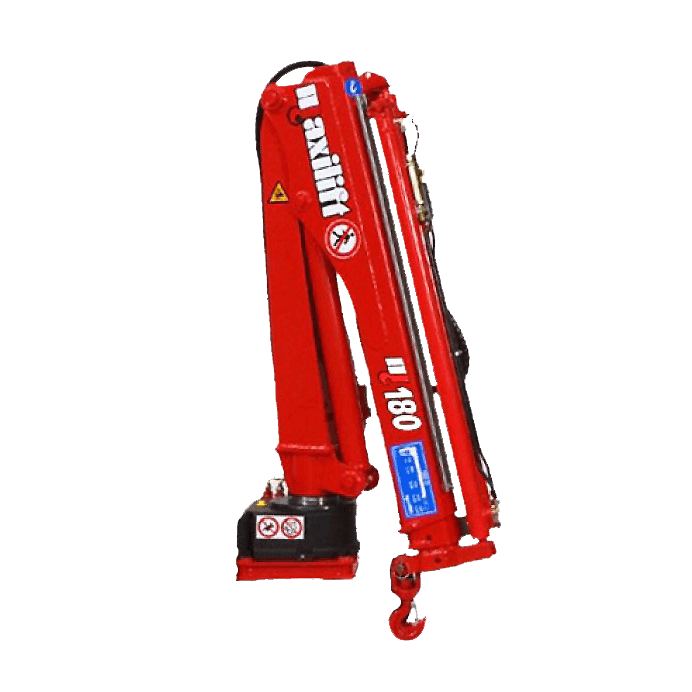

ML180 - 12,250 ft lb Telescopic Stiff Boom Crane

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

Available versions and options should be reviewed against the vehicle, body layout, payload, and setup requirements.

Including:

  • 15 lt. oil tank for H (P.T.O. - Power Take Off) version
  • Motor pump kit with 11 lt. oil tank for electro-hydraulic versions E12/24V (along with battery connection cables)
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Crane base with 1 hydraulic and 1 mechanical stabilizers (fix or tilting)
  • Crane base with 2 hydraulic stabilizers (fix or tilting)
  • 3 - 4 functions proportional remote control (by cable or radio)
  • 500 kg hydraulic winch (for H versions only)

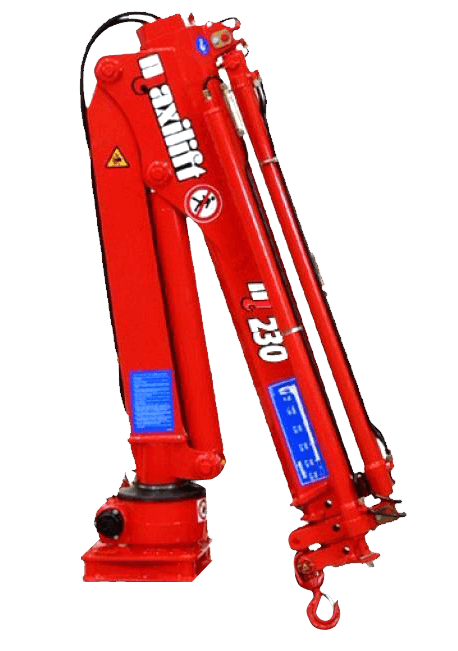

ML230 - 16,300 ft lb Telescopic Stiff Boom Crane

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

MULTIFUNCTION 4+1 RADIO REMOTE CONTROL EQUIPPED VERSION

  • Shoulder belt style light transmitter console, compact shoulder-belt transmitter
  • 4 proportional function-levers
  • 1 selector for stabilizers function
  • 5-function valve bank (1 function available, prearranged for winch). Possibility to manually operate in emergency conditions

Including:

  • 15 lt. oil tank and filter
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Crane base with 2 hydraulic stabilizers (fix or tilting)
  • Main beam with hydraulic stabilizers (fix or tilting)
  • 500 kg hydraulic winch (for H versions only)

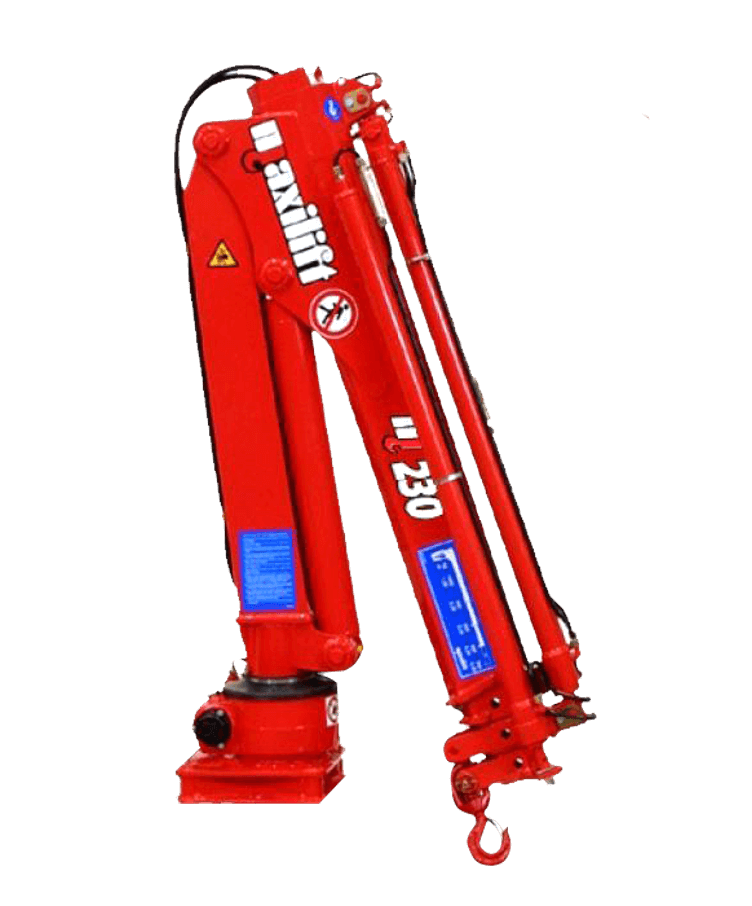

ML230 MRRC - 16,300 ft lb Telescopic Stiff Boom Crane (Multifunction Radio Remote Control)

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

Including:

  • 4 gal. oil tank for H (P.T.O. - Power Take Off) version
  • Motor pump kit with 3 gal. oil tank for electro-hydraulic versions E12/24V (along with battery connection cables)
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Crane base with 2 hydraulic stabilizers (fix or tilting)
  • Additional beam with hydraulic or mechanical stabilizers
  • 3 - 4 functions proportional remote control (by cable or radio)
  • 1,540 lb hydraulic winch (for H versions only)

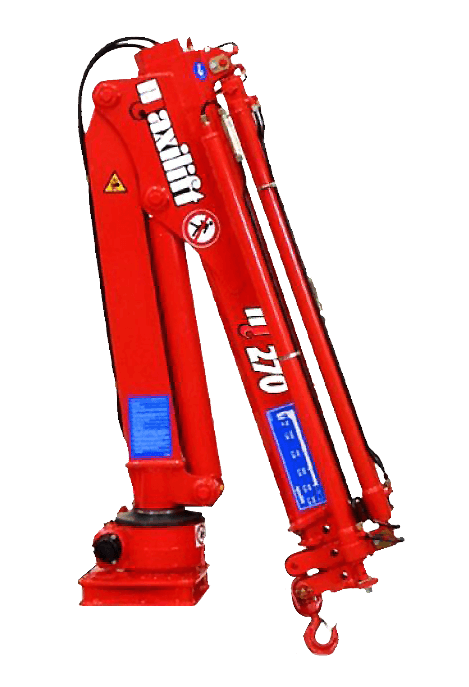

ML270 - 18,500 ft lb Telescopic Stiff Boom Crane

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

MULTIFUNCTION 4+1 RADIO REMOTE CONTROL EQUIPPED VERSION

  • Shoulder belt style light transmitter console, compact shoulder-belt transmitter
  • 4 proportional function-levers
  • 1 selector for stabilizers function
  • 5-function valve bank (1 function available, prearranged for winch). Possibility to manually operate in emergency conditions

Including:

  • 15 lt. oil tank and filter
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Crane base with hydraulic stabilizers (fix or tilting)
  • Main beam with hydraulic stabilizers (fix or tilting)
  • 1,540 lb hydraulic winch

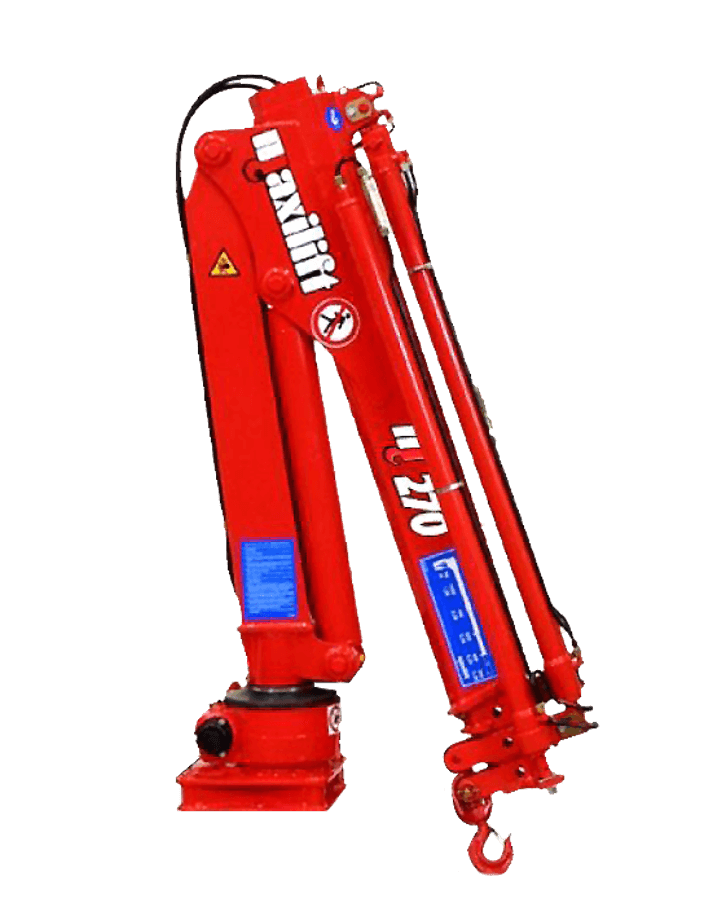

ML270 MRRC - 18,500 ft lb Telescopic Stiff Boom Crane (Multifunction Radio Remote Control)

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

Including:

  • 15 lt. oil tank for H (P.T.O. - Power Take Off) version
  • Motor pump kit with 11 lt. oil tank for electro-hydraulic versions E12/24V (along with battery connection cables)
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Crane base with 2 hydraulic stabilizers (fix or tilting)
  • Additional beam with hydraulic stabilizers
  • 3 - 4 functions proportional remote control (by cable or radio)
  • 700 kg hydraulic winch (for H versions only)

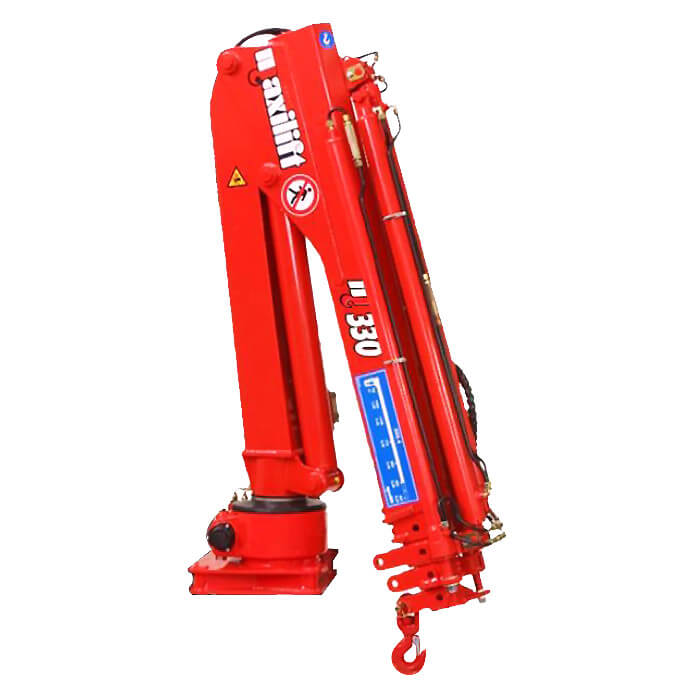

ML330 - 23,600 ft lb Telescopic Stiff Boom Crane

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

MULTIFUNCTION 4+1 RADIO REMOTE CONTROL EQUIPPED VERSION

  • Shoulder belt style light transmitter console, compact shoulder-belt transmitter
  • 4 proportional function-levers
  • 1 selector for stabilizers function
  • 5-function valve bank (1 function available, prearranged for winch). Possibility to manually operate in emergency conditions

Including:

  • 15 lt. oil tank and filter
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Crane base with hydraulic stabilizers (fix or tilting)
  • 1,540 lb hydraulic winch

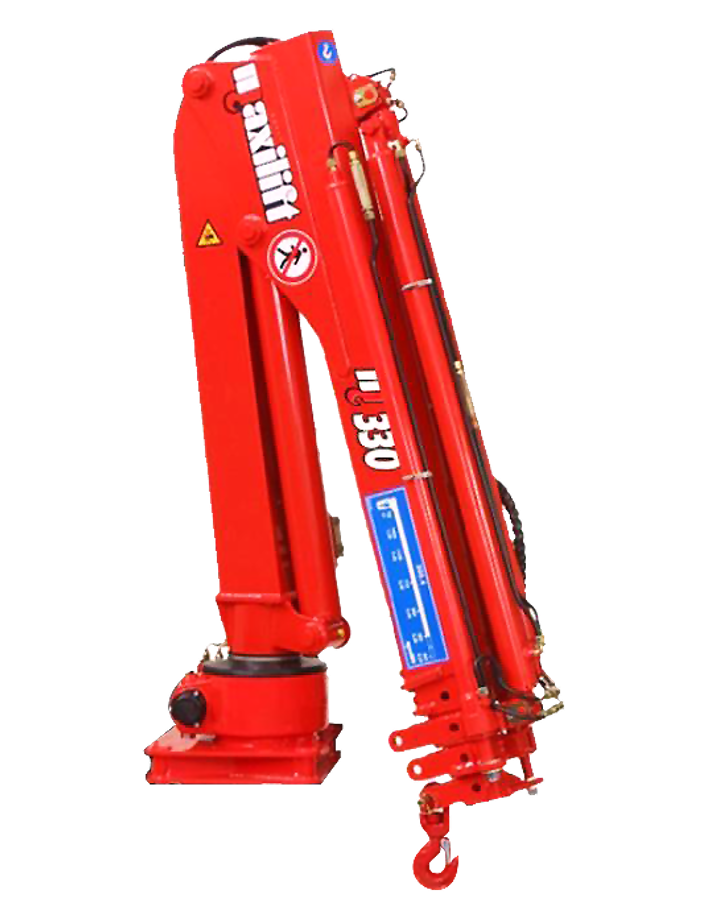

ML330 MRRC - 26,000 ft lb Telescopic Stiff Boom Crane (Multifunction Radio Remote Control)

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

Including:

  • 15 lt. oil tank for H (P.T.O. - Power Take Off) version
  • Motor pump kit with 11 lt. oil tank for electro-hydraulic versions E24V (along with battery connection cables)
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Crane base with 2 hydraulic stabilizers (fix or tilting)
  • Additional beam with hydraulic stabilizers
  • 3 - 4 functions proportional remote control (by cable or radio)
  • 990 kg hydraulic winch (for H versions only)
ML380 - 27,300 ft lb Telescopic Stiff Boom Crane

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

MULTIFUNCTION 4+1 RADIO REMOTE CONTROL EQUIPPED VERSION

  • Shoulder belt style light transmitter console, compact shoulder-belt transmitter
  • 4 proportional function-levers
  • 1 selector for stabilizers function
  • 5-function valve bank (1 function available, prearranged for winch). Possibility to manually operate in emergency conditions

Including:

  • 15 lt. oil tank and filter
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Crane base with hydraulic stabilizers (fix or tilting)
  • 990 kg hydraulic winch

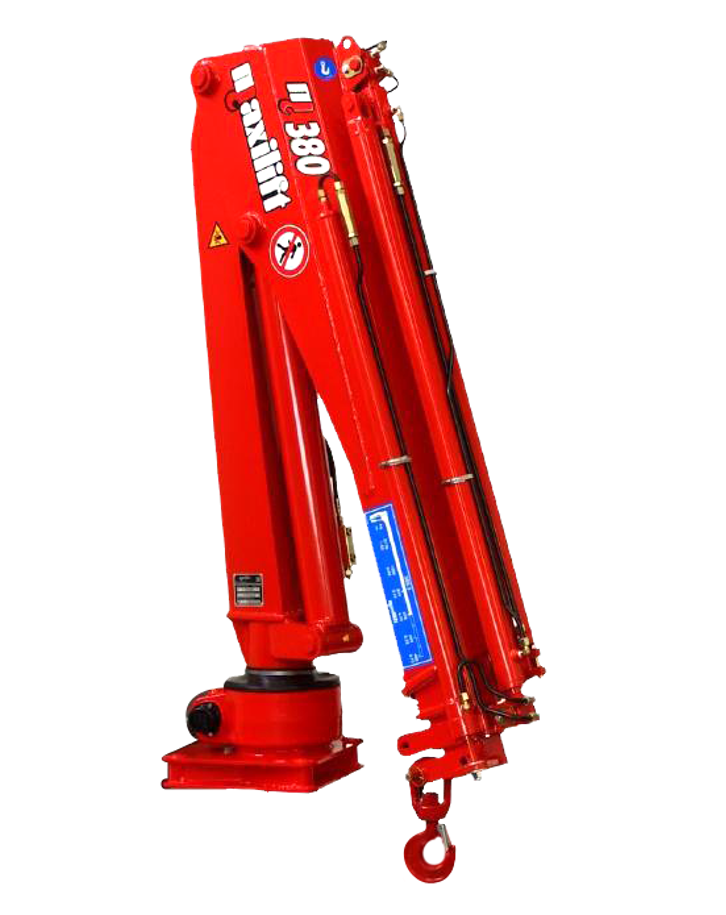

ML380 MRRC - 27,300 ft lb Telescopic Stiff Boom Crane (Multifunction Radio Remote Control)

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

Including:

  • 30 lt. oil tank
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Crane base with 3,300 mm or 4,400 mm spread and hydraulic stabilizers (fix or tilting)
  • 3 - 4 functions proportional remote control (by cable or radio)
  • 990 kg hydraulic winch

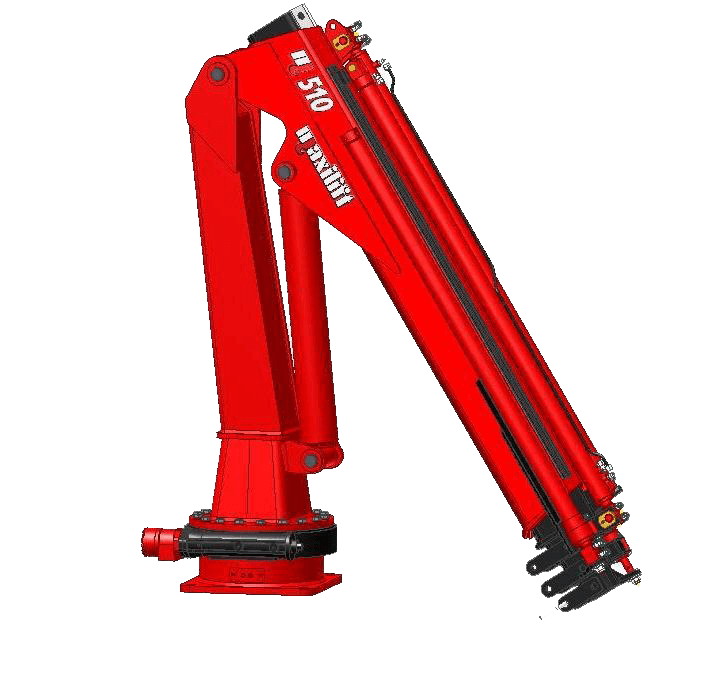

ML510 - 35,400 ft lb Telescopic Stiff Boom Crane

ANT Minicrane: One model for a wide range of versions. For pickup-based service trucks, small trailers, and compact service applications where removable mounting may be useful.

MULTIFUNCTION 4+1 RADIO REMOTE CONTROL EQUIPPED VERSION

  • Shoulder belt style light transmitter console, compact shoulder-belt transmitter
  • 4 proportional function-levers
  • 1 selector for stabilizers function
  • 5-function valve bank (1 function available, prearranged for winch). Possibility to manually operate in emergency conditions

Including:

  • 15 lt. oil tank and filter
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options:

  • Crane base with 130″ or 173′ spread and hydraulic stabilizers (fix or tilting)
  • 2,180 lb hydraulic winch

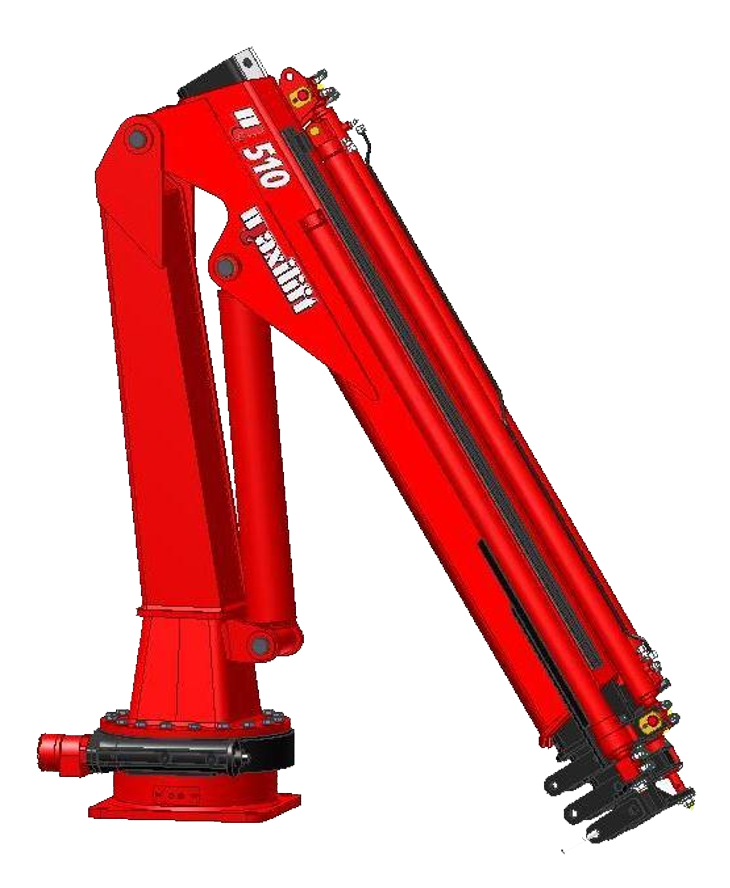

ML510 MRRC - 35,400 ft lb Telescopic Stiff Boom Crane 5 tm (Multifunction Radio Remote Control)
