Refrigeration Truck

The Box That Keeps Your Deliveries Fresh

Morgan Truck Body

Refrigerated Truck Bodies

TK Truck Body's refrigerated truck bodies lead the industry in design and engineering. From our insulation to our Thermo King Refrigeration units, TK Truck Body's refrigerated bodies are designed to help you deliver fresh to frozen products — around the block or across the country!

Home delivery, catering, floral, beverage, dairy, produce, meat, seafood, ice cream, and everything in between — the list is long and the choice is clear. Nobody delivers like TK Truck Body!

Engineering

Cold Star Series Features

Aerodynamic front-end design and a heavy-duty plastic dormer move air and water away from your body, while folding steps and strategically positioned grab handles provide easy service-access to the refrigeration unit. Patented poly-tuff corners offer enhanced durability in areas that are often vulnerable to dents and dings that can allow air and water to infiltrate the cargo area.

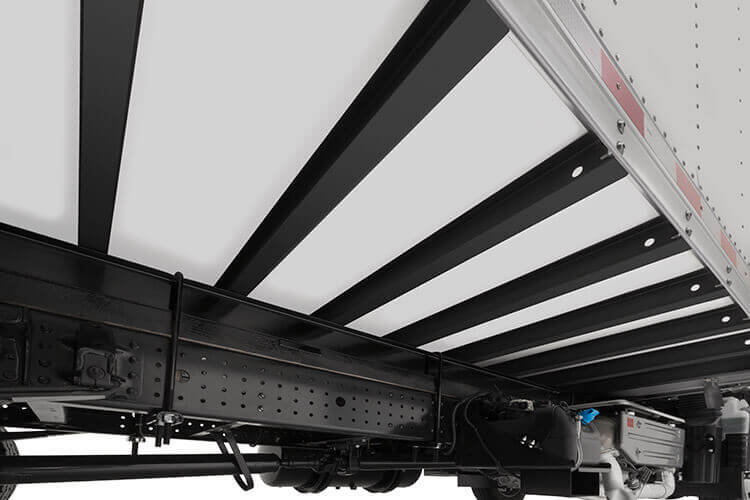

Lightweight, strength, and resistance-to-the-elements come together on TK Truck Body's Cold Star sub-frame to provide superior protection. The steel center rail with 3" steel I-beam cross members (positioned 12-inches on-center), and 4" longrails provide strength where it's needed, and lighter weight overall. Steel and aluminum sub-frame components also receive Mylar tape to mitigate corrosion.

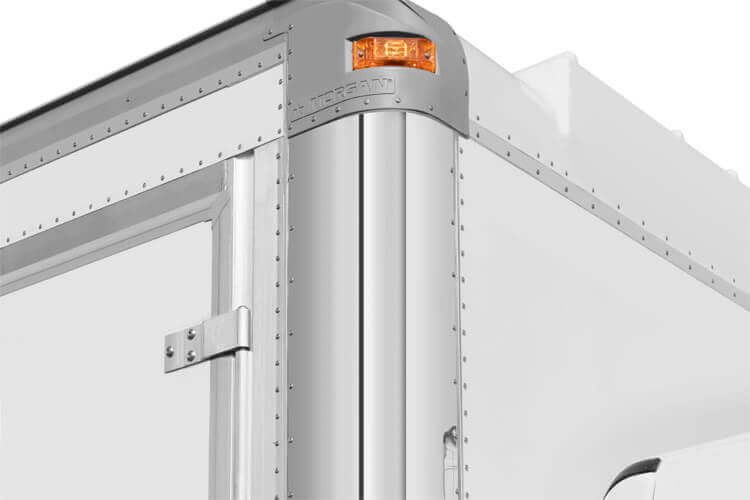

Temperature differences inside and outside of your refrigerated body make moisture a constant concern. TK Truck Body protects your investment by using corrosion-resistant stainless steel in areas where air exchange is greatest — such as the rear frame header. A rain deflector at the rear and strategically-positioned grab handles at both the curb and roadside help protect your team. Galvanealed rear-frame options are also available for added strength.

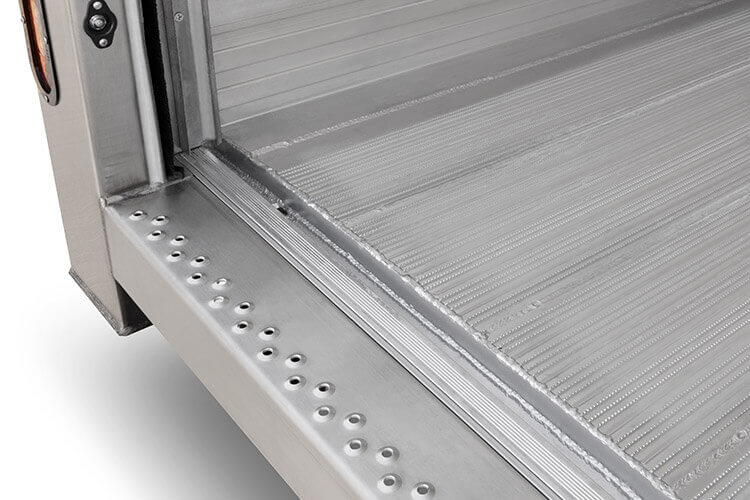

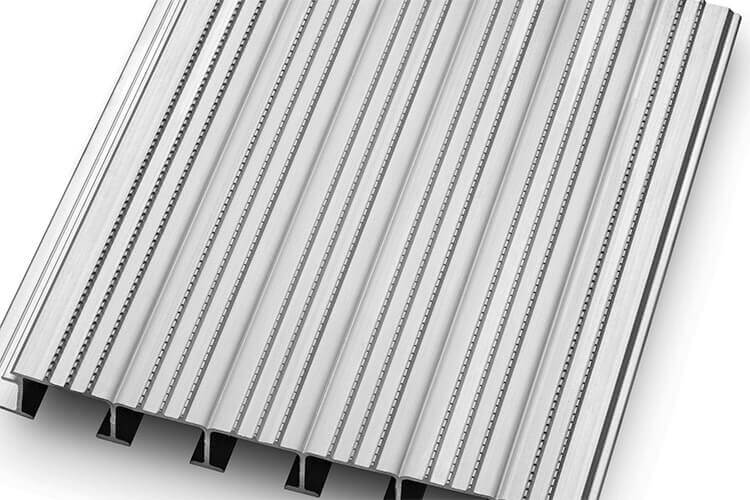

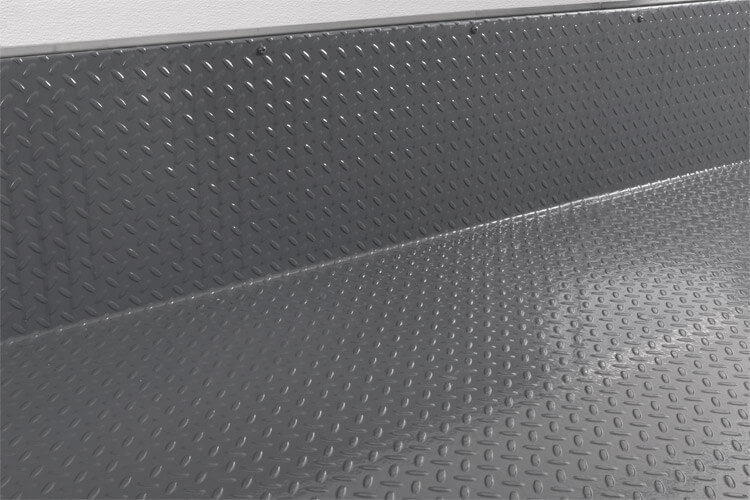

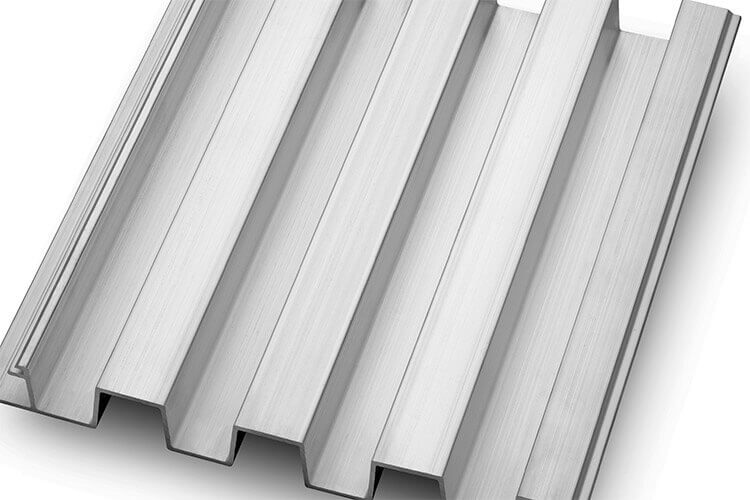

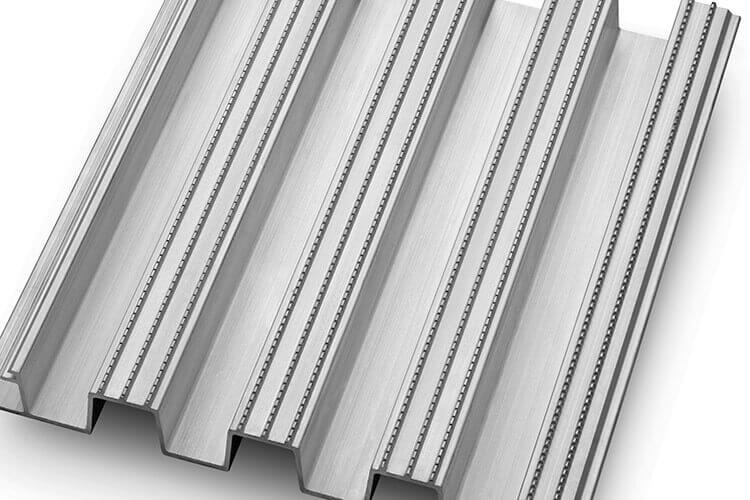

TK Truck Body's refrigerated truck bodies employ a poured-in-place polyurethane foam process that ensures consistent density and insulation across the entire floor. Without seams or inconsistencies, opportunities for air and moisture to seep into the cargo area from below are virtually eliminated. Inside, corrosion-resistant aluminum floor options make it easy to manage water and condensate while providing the traction needed for safe movement.

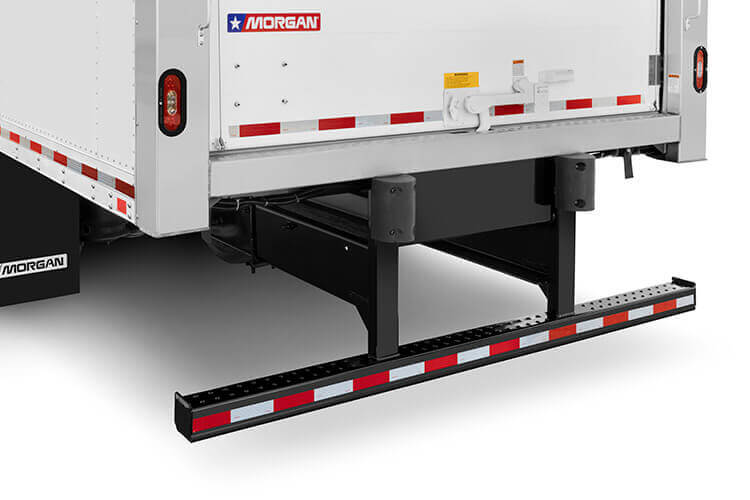

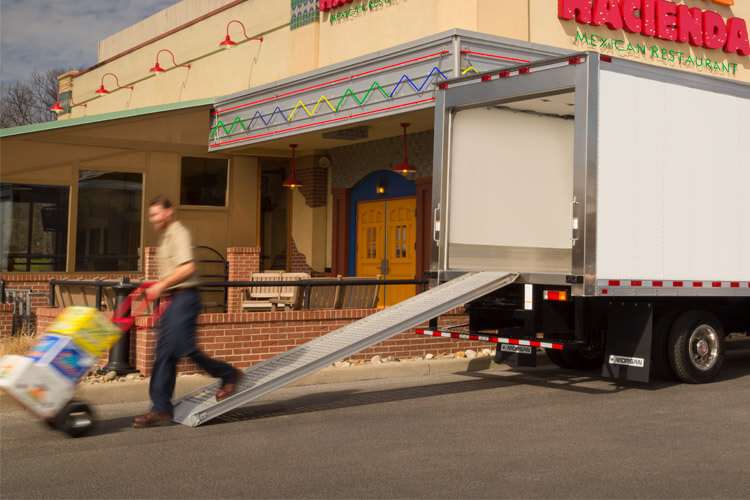

Get better traction with improved ingress/egress using our 5" structural bumper with pouched surface and closure plate. From TK Truck Body's standard 5-inch structural bumper to optional step, drop-step, intermediate step, and under-ride bumpers — to walk ramps and lifts at the rear OR side — easier, safer movement is built-in.

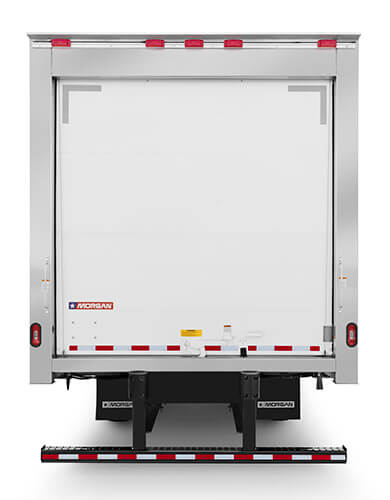

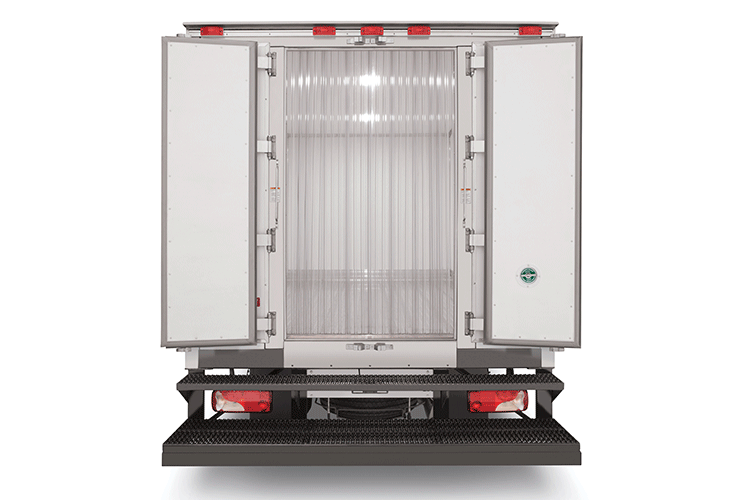

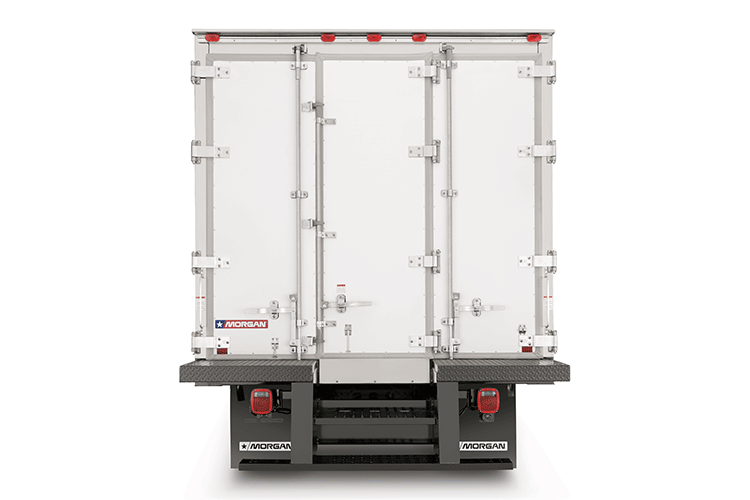

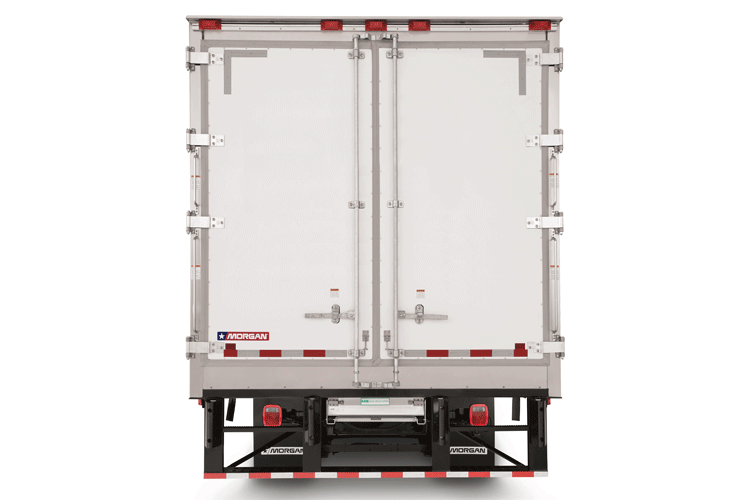

Our top-quality Whiting TempGuard rear doors are designed and built to keep cold air in and warm air out. Full-perimeter thermal breaks mitigate passive heat transfer that can cause temperature fluctuations in the cargo area. Seals are easily replaced for lasting protection year-after-year. Available options include strip curtains, safety releases, door hold-backs and panel protection plates.

TK Truck Body's standard roof uses a single piece of .032" crowned aluminum sheeting to minimize seams where water tends to infiltrate. The gentle bow is reinforced with anti-snag supports positioned 24-inches on-center, providing added strength without unnecessary weight while helping to prevent pooling of water and ice.

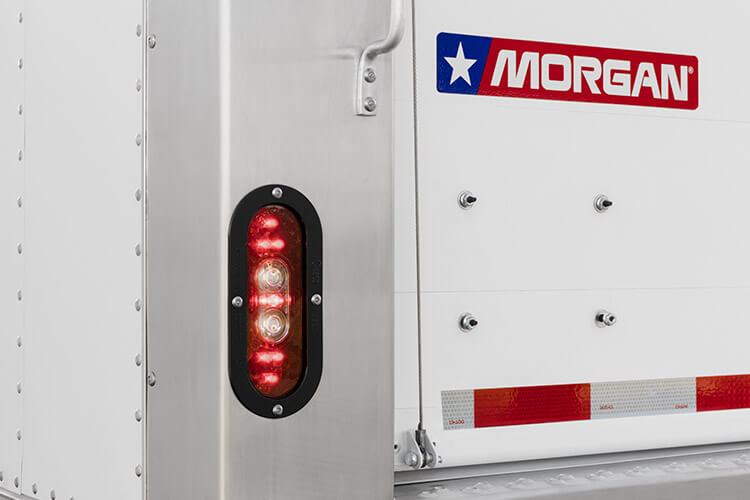

Standard lighting on all refrigerated units includes a dome light with indicator-switch mounted in the cab, and exterior LED sealed clearance lights — all meeting FMVSS-108 requirements. TK Truck Body's commitment to your unique needs means you can spec virtually any lighting configuration, from quantity, type and style, to placement inside and out.

Regardless of conditions outside, TK Truck Body's refrigerated bodies help maintain consistent temperature control inside your cargo area by mitigating passive heat transfer. Four inches of urethane foam across the front and floor, and 3 inches at the sides and ceiling provide a significant barrier — regardless of whether you choose aluminum, plate, or FRP wall construction. 4 and 5-inch insulation packages are also available for particularly challenging conditions.

Construction

Refrigerated Van Bodies

Industry-leading poured foam construction utilizes heated press technology

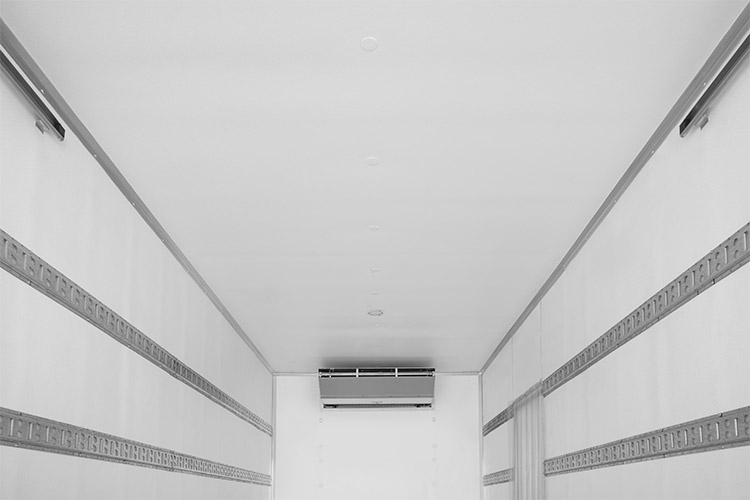

Seamless, fastener-free interior lining
Meets all North American standards for food safety

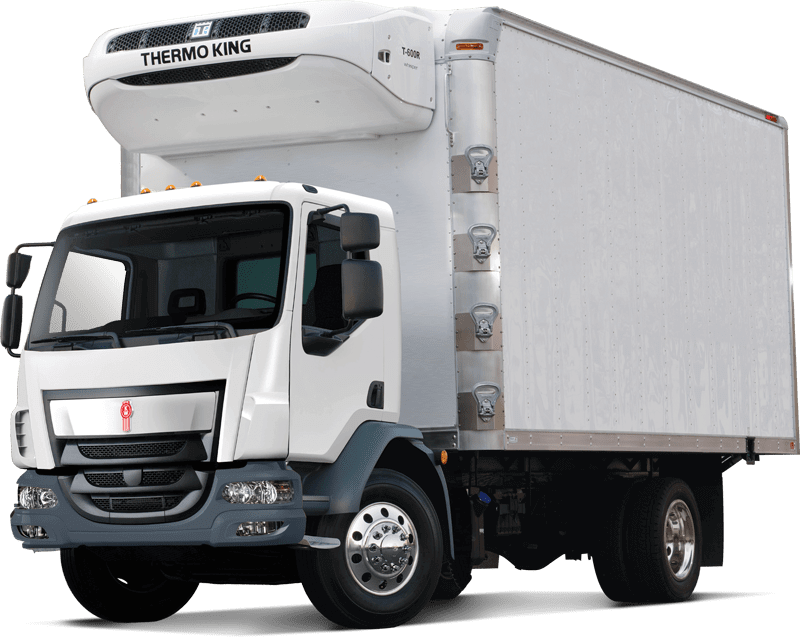

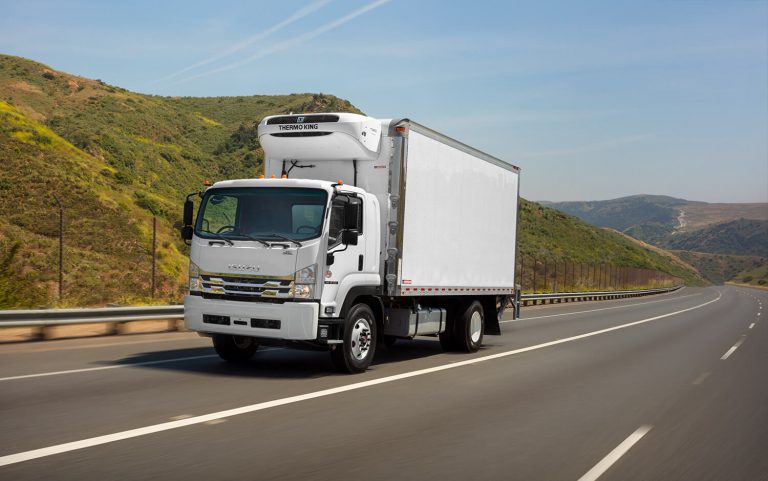

Thermo King

Diesel Truck Units

TK Truck Body is proud to partner with Thermo King Edmonton to offer industry-leading refrigeration units for your truck body.

Double-digit maintenance savings for a real impact on your bottom line
EMI (extended maintenance interval) of 2,000 hours — the longest in the industry — lowering downtime and maintenance costs
Reliable reciprocating compressor technology

Construction

Wall Construction Options

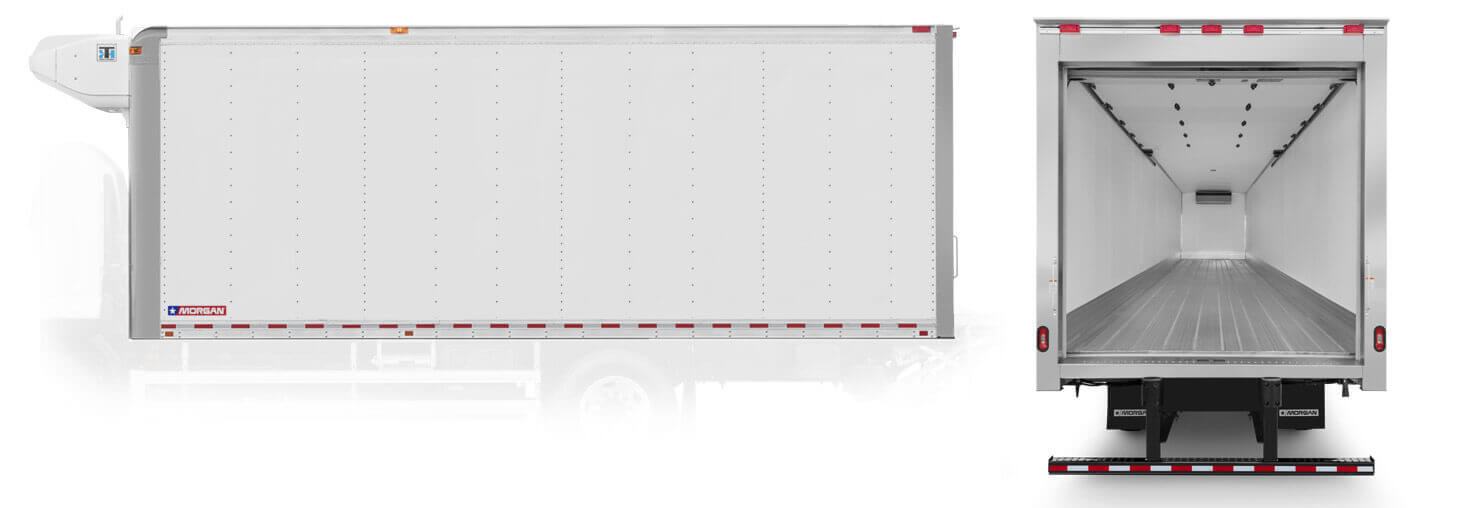

Aluminum

Affordability and lightweight are key considerations when selecting aluminum wall construction for your refrigerated box, straight-truck, or van body — because light weight adds up to reduced fuel consumption. This .040" corrosion-resistant aluminum skin stands the test of time for a better return on your investment.

Morgan Plate / Composite

Morgan Plate was designed and built with strength and versatility in mind. This proprietary material is made of a high-density polyethylene core bonded between two sheets of painted, high-strength, 80ksi yield, galvanized steel. Morgan Plate's clean, uninterrupted surface offers a perfect canvas for custom graphics.

Fiberglass-Reinforced Plywood (FRP)

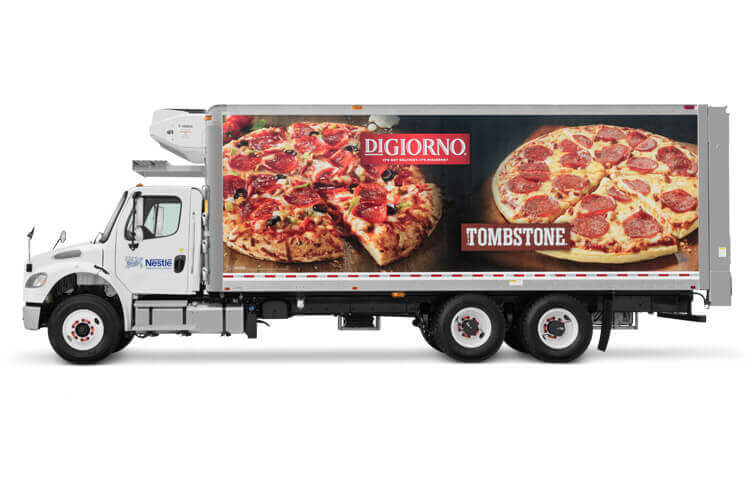

Morgan's Fiberglass-Reinforced Plywood (FRP) walls consist of a 1/2" plywood core entirely encased in polyester resin reinforced with high-strength woven fiberglass. They deliver significant strength, impact resistance, and resistance to minor scratches and dents. The smooth exterior surface is also a great canvas for custom graphics and promoting your business. TK Truck Body offers custom paint and decal installation to minimize downtime.
